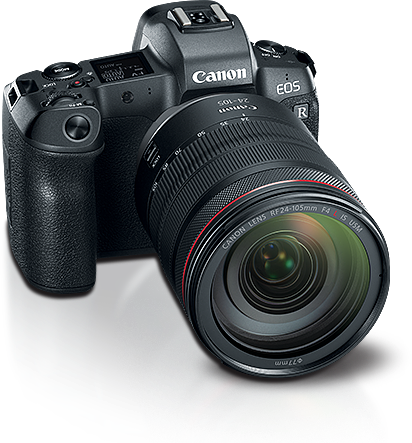

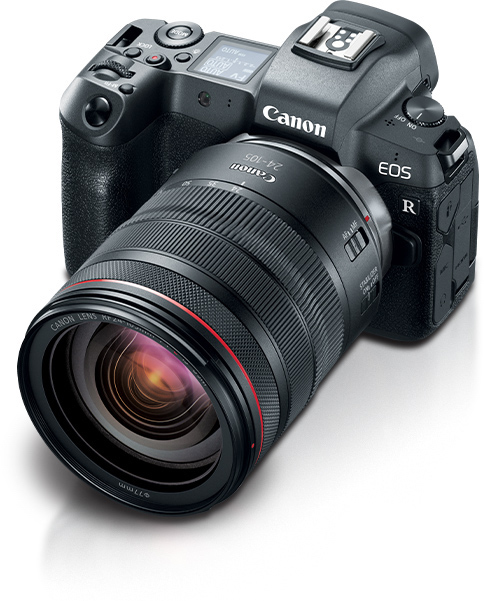

EOS R CAMERA

Meet Canon's new addition to the EOS System, the EOS R camera. It packs a range of advanced features from a full-frame, 30.3 Megapixel CMOS sensor that captures gorgeous images, to a Dual Pixel CMOS AF system for fast and accurate autofocus, to impressive 4K video recording capabilities. All this comes in a compact and intuitive design that's compatible with RF, EF* and EF-S* lenses, opening a world of creative possibilities. Ready to capture any number of subjects in many different environments, the EOS R is primed to deliver the stunning photos and videos that photographers, moviemakers and any visual storytellers need to make their stories fly.

360° VIEW

© Jimmy Chin, Canon Explorer of Light

SUPERB IMAGE QUALITY

GREAT PERFORMANCE AND IMPRESSIVE RESULTS

30.3 MP Full-frame CMOS Sensor DIGIC 8 Image Processor

The EOS R camera features a 35mm full-frame CMOS sensor with approx. 30.3 effective megapixels for stunning results with incredible detail and clarity, even in low-light situations. It’s powered by the DIGIC 8 Image Processor, which enables an expansive ISO range, enhances Image Stabilization and turbocharges operations across the board for outstanding image quality and impressive performance.

30.3 MP
CMOS SENSOR
30.3 MP Full-frame CMOS Sensor
DIGIC 8
IMAGE PROCESSOR
DIGIC 8
EXCELLENT LOW-LIGHT PERFORMANCE

ISO 40000

The EOS R camera has a standard ISO sensitivity range of 100–40000 for stills and 100–25600 for video (100–12800 for 4K video shooting). Combined with the EOS R camera’s remarkable low-light AF performance, still and video shooting is possible even in dark situations in a variety of places and occasions.

EOS R camera

© Bruce Dorn, Canon Explorer of Light

AMAZING AUTOFOCUS

DAF

EOS R camera
SOPHISTICATED AF SYSTEM
AND WIDE AF AREA

The EOS R camera’s AF system features an incredible 5,655 manually selectable AF points**. Combined with a focus area that covers approx. 88% horizontal and 100% vertical*** when using RF lenses and select EF lenses, this AF system helps ensure swift and accurate focus no matter where your subject is located in the frame.

MAXIMUM OF 5,655 MANUALLY
SELECTABLE AF POINTS**

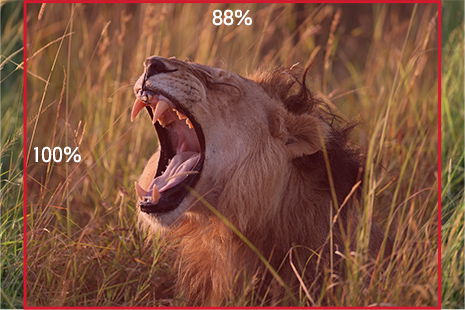

APPROX. 88% x 100%
AF AREA COVERAGE***
AF Area Coverage
INCREDIBLE LOW-LIGHT AUTOFOCUS

EV -6^ Low-light Autofocus

Amazing for nighttime photography or in very low light, the EOS R camera’s brilliant AF can operate in light as dim as a light rating of EV -6^ where other AF systems may fail or search. Phenomenal AF is achieved even when using lenses with high F numbers. This ultra-sensitive AF works in concert with the EOS R's EVF to clearly capture subjects even when there’s limited light.

EV -6
SHARP FOCUS
WITHIN 0.05 SEC.^^

0.05 sec.^^ High-speed Focusing

The EOS R camera’s highly responsive Dual Pixel CMOS AF system delivers the world’s fastest AF focusing speed of 0.05 seconds^^. This means fast action can be captured and focus can be maintained with speed, accuracy and ease.

Sharp Focus

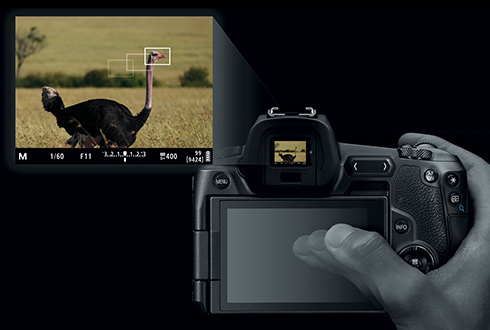

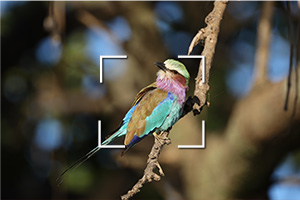

Touch and Drag AF

Touch and Drag AF makes it fast and easy to select a focus point without taking your eye away from the viewfinder. Using the Touchscreen LCD, it’s as simple as pointing to the desired area of focus. The chosen AF point is then displayed in the camera’s EVF for quick confirmation.

Touch and Drag AF

Variety of AF Modes

The EOS R camera features an expanded range of selectable AF modes to adapt to specific situations and subjects. For example, with Eye Detection AF, when the EOS R detects a human face, it automatically uses the subject’s eye as the autofocus point and maintains focus as the subject moves through the image frame.

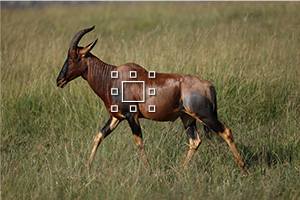

  • Expanded area AF

    Expanded area AF
    (AF point expansion with 8 surrounding points)

  • Zone AF

    Zone AF

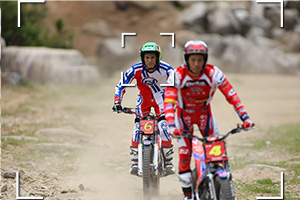

  • Face+Tracking priority AF

    Face + Tracking priority AF

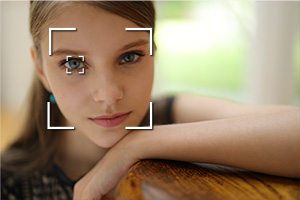

  • Eye Detection AF

    Eye Detection AF

EF-EOS R

EOS R
Control Ring Mount Adapter EF-EOS R
EF 100-400mm f/4.5-5.6L IS II USM
Extender EF 2x III

f/8 and f/11 Compatible in All AF Areas

With the EOS R camera, autofocus will operate over nearly the entire image area even when used with compatible f/8 and f/11 lenses. This means the EOS R can easily achieve sharp AF using lenses with smaller apertures, and is even compatible with select EF extenders for uncompromised shooting at an expanded range of focal lengths.

EF-EOS R

EOS R
Control Ring Mount Adapter EF-EOS R
EF 100-400 mm f/4.5-5.6L IS II USM
Extender EF 2x III

© Lindsay Adler, Canon Explorer of Light

PROFESSIONAL 4K VIDEO

EOS R camera
ADVANCED VIDEO RECORDING

4K 30p, Full HD 60p, HD 120p

Whether shooting videos to share with friends online or serving as a secondary camera on a large production, the EOS R camera offers advanced recording features such as 4K at 29.97 fps, Full HD at 59.94 fps and HD at 119.9 fps. Helpful functions include distortion correction during recording and Movie Digital IS. Additionally, video can be recorded during still photo shooting by simply pressing the Movie Shooting button.

MULTIPLE 4K FORMATS

4K IPB/ALL-I MP4 H.264

The EOS R camera can record 4K video using IPB or ALL-I* compression and save them as MP4 files. This helps provide further flexibility with both file size, image quality and integration with video clips recorded with other cameras.

* 4K All-I recording requires an SD Memory card with a minimum write speed of 60MB/s.

EXCELLENT DETAILS FOR POST-PRODUCTION
  • Normal image

  • Canon Log image

Canon Log

Built-in Canon Log gamma reduces heavy shadows and blown out highlights, delivering movie images with approximately 12 stops of dynamic range (at ISO 400) for excellent shadow and highlight detail. Ideal for post-production and multi-camera set-ups, Canon Log is an indispensable feature that makes the EOS R camera a serious moviemaking performer.

  • Normal image

  • Canon Log image

HDMI Output for 4K 10-bit 4:2:2 Video

The EOS R camera features an HDMI port that's useful for outputting recorded video directly to an external drive. For maximum color and dynamic range when shooting with Canon Log, the EOS R can even output 10-bit movie recordings in ITU-R BT.2020 color.

FOCUS MANUALLY WITH EASE

Focus Peaking and Dual Pixel Focus Guide

For help when using manual focus, Focus Peaking helps establish the focus area quickly and clearly by indicating the area in focus with a colored line. It’s usable with the Dual Pixel Focus Guide feature, which displays where the position of focus is relative to the subject and is especially helpful when recording movies.

FOCUS PEAKING

DUAL PIXEL FOCUS GUIDE
Focus Peaking

IMPRESSIVE OPERABILITY

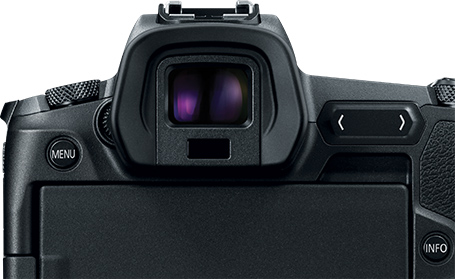

BUILT-IN OLED
ELECTRONIC VIEWFINDER

The EOS R camera features a high-precision 0.5-inch OLED (Organic Light-Emitting Diode) EVF with approx. 3.69 million dots and a 23mm eyepoint. Displaying a bright image and extensive shooting information that rotates with the camera, the viewfinder excels in bright conditions where viewing the camera’s LCD may prove difficult.

3.69 MILLION DOTS OLED EVF
OLED EVF

Excellent Visibility

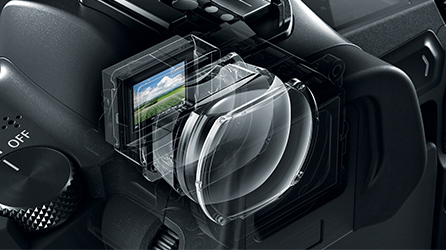

The EOS R camera’s electronic viewfinder has been created to provide a bright, sharp and colorful 100% view of the subject at hand. Equipped with an aspherical lens, the EVF shows a crisp and vivid image with minimal aberration or distortion, even when the eye moves off the center of the visual field.

Excellent Visibility

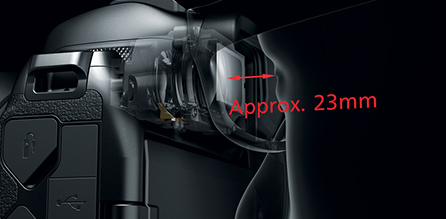

High Eyepoint

The EOS R camera’s EVF has a bright, 23mm-high eyepoint design that creates a generous 30mm space between your nose and the rear of the viewfinder. This makes it easy to compose and view images in the viewfinder with or without glasses. A dioptric adjustment of -4 – +2 means it’s simple to change as needed to suit various users.

High Eyepoint

3.69 Million Dots

The EVF’s 0.5-inch OLED based display features approximately 3.69 million dots for an incredibly sharp and detailed image that makes it easy to check focus and view the extensive image data that’s displayed.

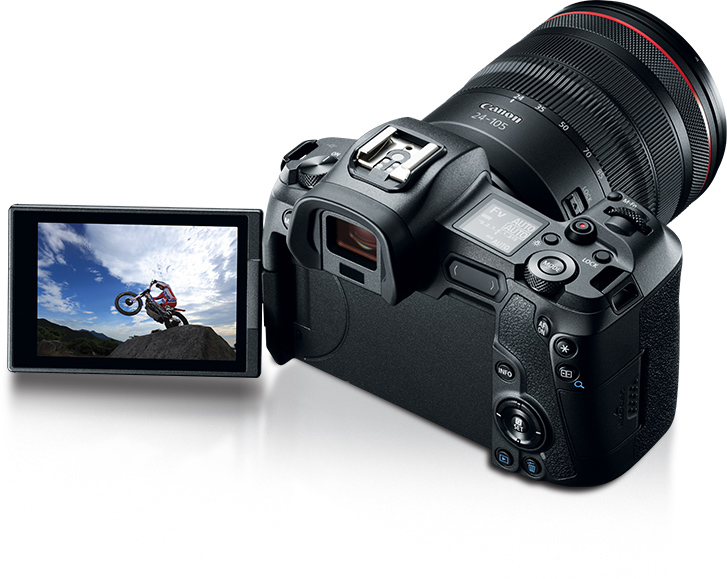

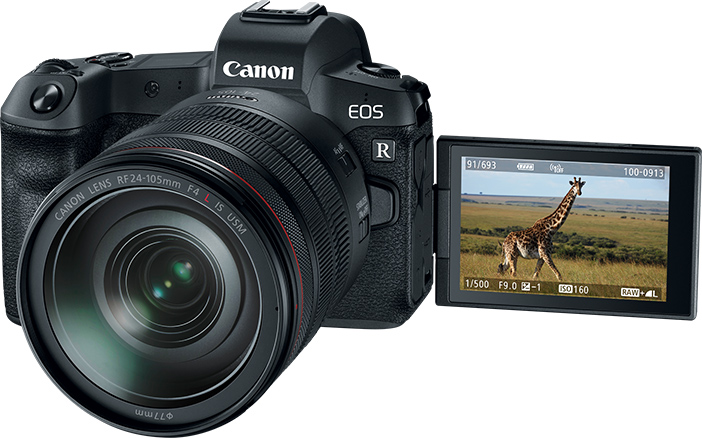

3.15" VARI-ANGLE TOUCHSCREEN LCD

The EOS R camera has a flexible 3.15-inch Vari-angle LCD that makes it easy to compose and shoot from virtually any angle. Its touchscreen enables setting changes and more with just a tap.

Touchscreen LCD
3.15-INCH
TOUCHSCREEN LCD
INNOVATIVE CONTROL

Multi-function Bar with Customizable Functions

The EOS R camera’s newly designed multi-function bar provides a high level of functionality and customization options for fast, intuitive shooting. Positioned to sit right under the thumb, the touch bar allows the user to change settings, check manual focus, browse finished photos and more.

REAL-TIME INFORMATION

Dot-matrix LCD Panel

An LCD panel on the top of the EOS R camera features a dot-matrix display that gives real-time information on the camera’s status, recording mode and more. It can be inverted from black to white to suit viewing preferences or the ambient light source.

AUTOMATIC SETTING CHANGES

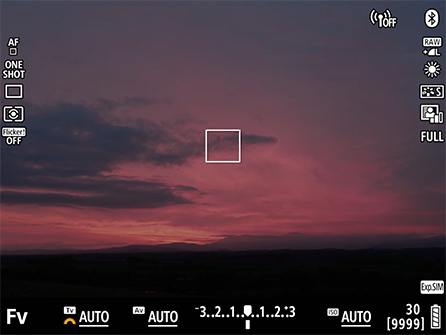

Flexible Priority Exposure Mode (Fv Mode)

With the EOS R camera’s all-new Flexible-priority AE mode (Fv), you can easily set features such as shutter speed, aperture and ISO to respond automatically or manually for greater convenience and flexibility.

Automatic Setting Changes

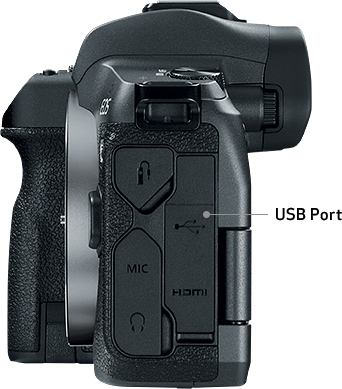

USB Charge Compatible

The EOS R camera is compatible with the USB Power Adapter PD-E1† for in-camera charging via USB. Featuring an industry standard USB-C connector, the USB Power Adapter PD-E1† makes for easy charging without the necessity to remove the battery from the camera.

Silent Shutter

Especially helpful for wildlife photography, journalism and quiet situations, the EOS R camera has a silent shutter feature that uses an inaudible electronic shutter instead of the camera’s focal-plane shutter.

USB Charge Compatible

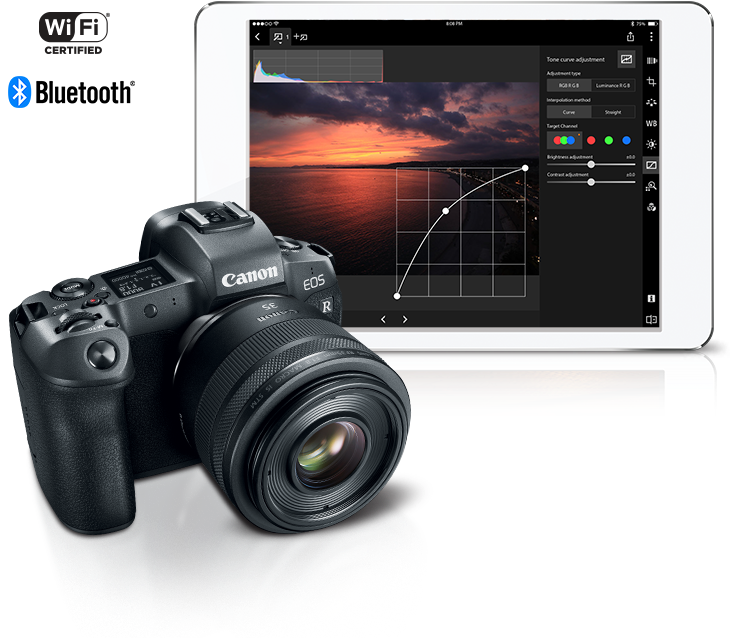

NEW MOBILE RAW WORKFLOW/NETWORK

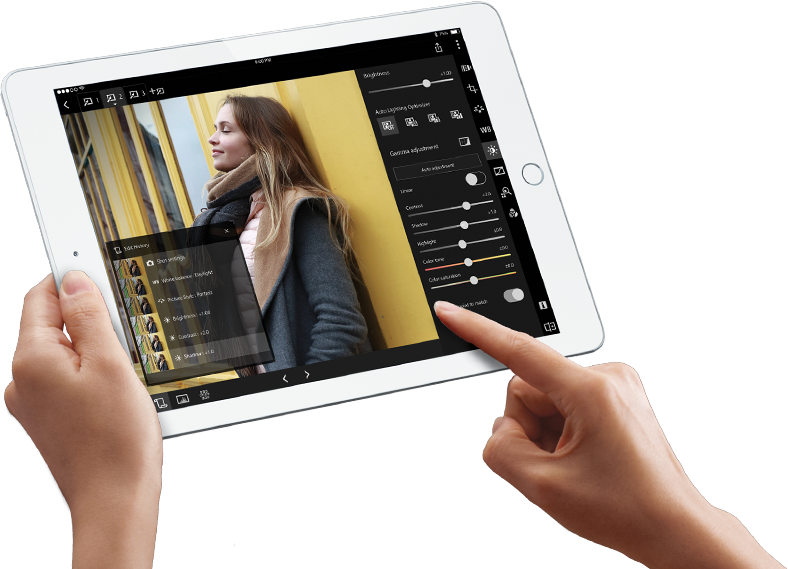

DIGITAL PHOTO PROFESSIONAL
Express

DPP Express

Canon’s Digital Photo Professional Express makes speedy processing of JPEGs and CR3 RAW files on a compatible handheld device a breeze. Working with Canon’s Camera Connect app^^^ to create a streamlined wireless workflow, DPP Express lets you adjust settings right on your mobile device, saving files to the cloud, a PC or your camera.

DPP Express

Camera Connect^^^

Canon’s Camera Connect^^^ app uses the EOS R camera’s built-in Wi-Fi® and Bluetooth® compatibility to connect a compatible mobile device. This allows a number of functions from easy image transfer to remote shooting, to adding GPS information to your photos and videos and more.

CR3

The EOS R camera can capture photos as Compact Raw, or C-RAW (.CR3) files, saving valuable time and storage space with ease. Smaller than RAW files, C-RAW files can be processed in camera, can render an L-sized JPEG, are compatible with the Digital Lens Optimizer and more.

IMPROVED DURABILITY

Magnesium Alloy Body
Shutter Closes Shutter closes when powered off
READY FOR REAL-WORLD OPERATION

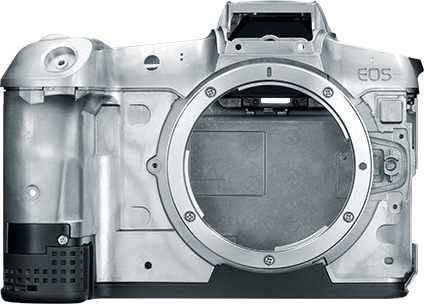

Magnesium Alloy Body

Comfortable and solid in the hand, the EOS R camera features a rigid yet lightweight magnesium alloy chassis that enhances body durability while shielding the camera from electromagnetic radiation and heat. It also has a tempered front panel for internal rigidity.

Magnesium Alloy Body

Shutter Durability

The EOS R camera has a robust, electronically controlled focal-plane shutter that’s rated to approx. 200,000 cycles for consistent and reliable use. It shoots as fast as 1/8000 sec. at up to 8 fps, and up to 5 fps with Servo AF.

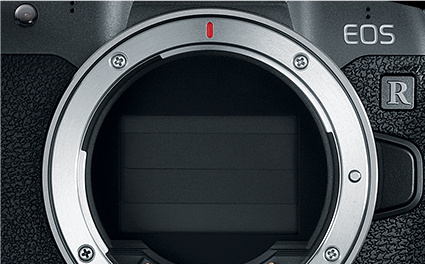

Shutter Closes if Powered Off without Lens

The EOS R camera has a mechanism to close the shutter when the camera is powered down and adjust settings accordingly to protect the shutter curtain.

Shutter Closes

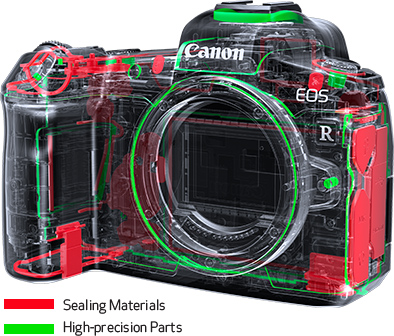

Dust and Water-resistant

The EOS R camera is designed for use in a variety of weather conditions. Sealing materials are used in critical areas, while its precise design and construction help to minimize accidental penetration of dust and moisture in the rest of the camera body.

Dust and Water-resistant

* Optional Mount Adapter EF-EOS R EF-EOS R is required when using EF/EF-S lenses with the EOS R camera.
** Available AF points may decrease when shooting with AF cropping or in movie mode, or depending on camera settings or lens attached.
*** When shooting still photos. Actual coverage varies depending on the lens in use.
^ When using RF 50mm F1.2 L USM, with central AF point.
^^ Among interchangeable lens digital mirrorless cameras incorporating 35mm full frame equivalent image sensors with phase-difference detection AF on the image plane and contrast detection AF, available in the market as of September 5th, 2018 (based on Canon's Research). Calculated based on the resulting AF speed measured according to the CIPA guidelines. (Varies depending on the shooting conditions and the lenses used.) Internal measurement method.
[Measurement conditions]: • Focusing brightness: EV 12 (room temperature, ISO 100) • Shooting mode: M • Lens used: RF24-105mm F4L IS USM (at focal length of 24mm) • Still photo shooting with shutter button operation • AF method: 1-point AF (with Center AF point) • AF operation: One-Shot AF
^^^ Compatible with iOS® versions 9.3/10.3/11.2, Android™ smartphone and tablet versions 4.4/5.0/5.1/6.0/7.0/7.1/8.0/8.1. Data charges may apply with the download of the free Canon Camera Connect app. This app helps enable you to upload images to social media services. Please note that image files may contain personally identifiable information that may implicate privacy laws. Canon disclaims and has no responsibility for your use of such images. Canon does not obtain, collect or use such images or any information included in such images through this app.
† Sold separately.

Certain images and effects simulated.
